Auxiliary Equipment for Nitrogen & Oxygen Gas Generators
Rongchen not only produces oxygen and nitrogen generators, but also provides with auxiliary equipment for the system, such as air compressor, gas purification equipment, air dryer, etc.

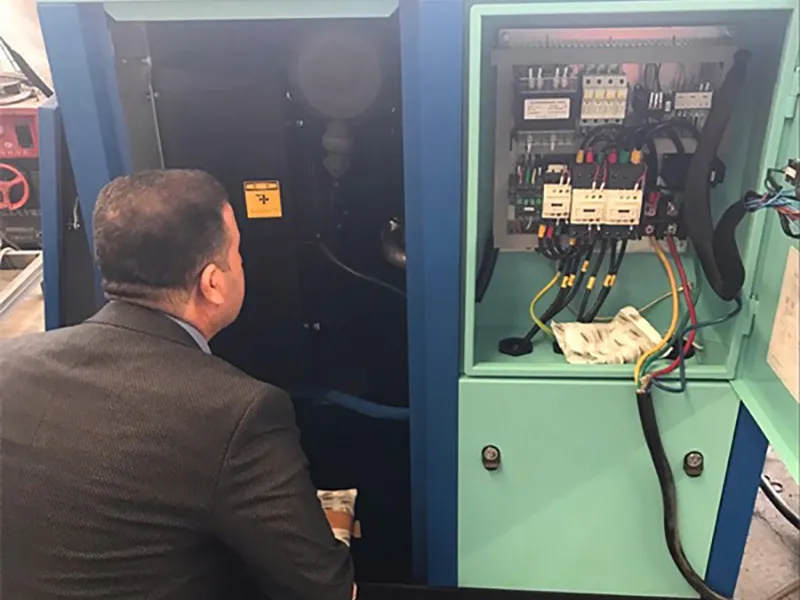

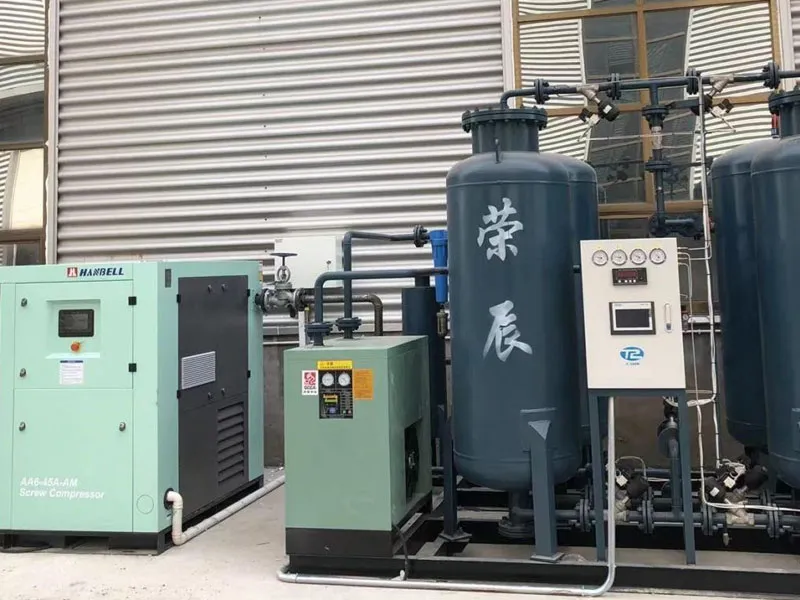

Air compressor is essential in the preparation process of gas generation, it is used to compress, filter, dry and cool the ambient air. The impurities, moisture and pollutants in the atmospheric air will be removed before the separation process of nitrogen and oxygen, so that the compressed air will have a higher quality and purity. We can provide you with individual air compressor or complete gas generation systems according to your specific need for the quantity and usage of the gas.
- Free air delivery: 0.4-101m³/min
- Oil content: 3ppm
- Air temperature: ambient temperature to ＋35°C
- Cooling method: air cooling
- Rated power: 4kW-750kW
- Transmission: direct drive/belt drive
Our Air Compressor can be extensively used in various fields of environmental protection and energy saving, oil and gas, food and beverage, medical, industrial manufacturing, building construction, automobile maintenance, etc.
- Can be used in equipment that are driven by compressed air, such as pneumatic nail guns, pneumatic wrenches, spray guns, etc.
- Can be used to generate energy by the mechanism of storing compressed air in a pressure vessel and releasing the supply energy
- Can be used to transport gases and materials, such as raw materials, chemicals and powdered materials through piping systems in industrial production
- Can be used to transport gases and materials through piping systems for industrial production, such as raw materials, chemicals and powdered materials.
- Fracturing of oil wells, air separation in the oil industry
- Can be used as cleaning and drying equipment for food and beverage processing
- Oxygen generation in medical industry

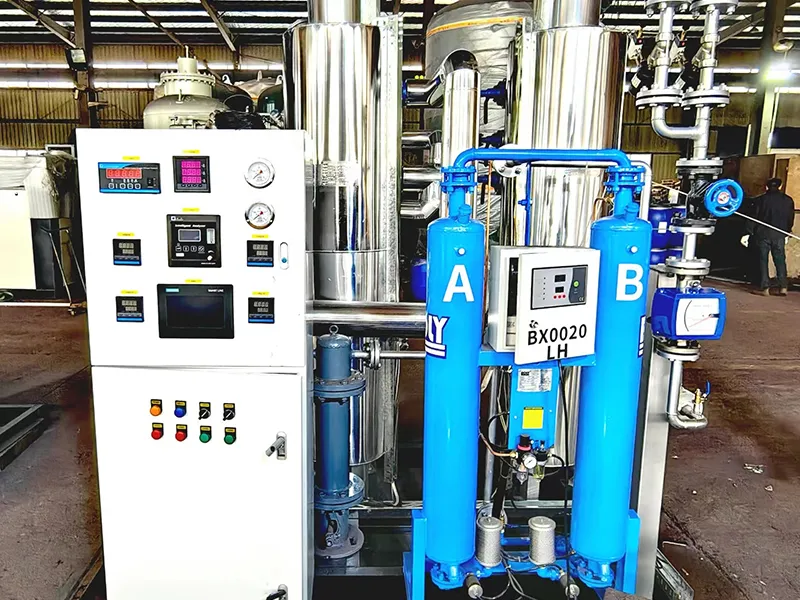

The gas purification equipment is used for further deoxygenation and drying of the product gas generated. The purification equipment is especially suitable for heat treatment processes that need high purity nitrogen and hydrogen to increase the brightness of the final products. Our gas purification equipment is usually used together with PSA nitrogen generator. The equipment specifications can be customized according to the usage cases and generation equipment purchased to better support your production.
It is needed when producing nitrogen with a high purity up to 99.9995%
- Flow rate: 100Nm³/h-3000Nm³/h
- Nitrogen purity: O2≤5ppm
- Working pressure: 0.6～1.0Mpa

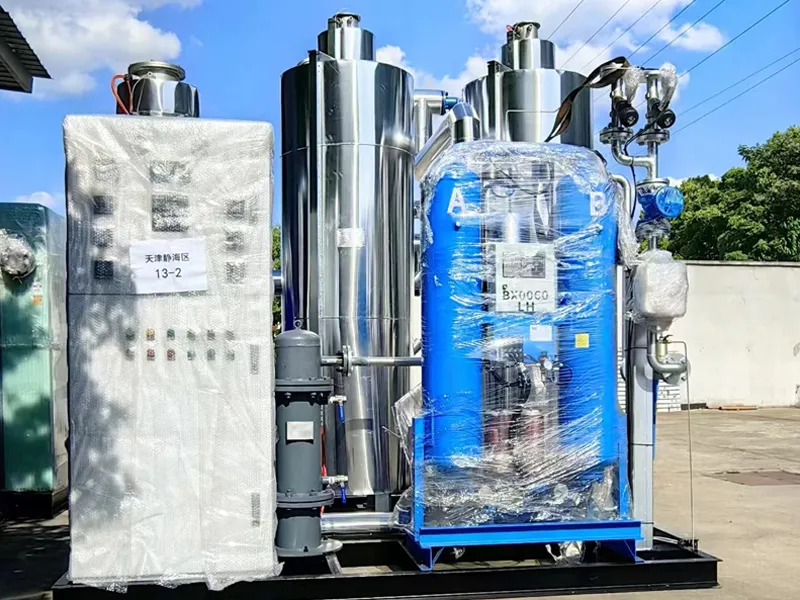

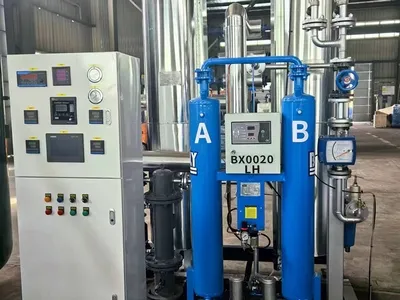

- Flow rate: 0.8-300Nm³/min
- Desiccant: activated alumina/ molecular sieve
- Pressure dew point: -20℃～-70℃
- Intake temperature: 0℃～45℃
- Air consumption: ≤7%
- Pressure drop: ≤0.025mpa
- Control method: PLC control

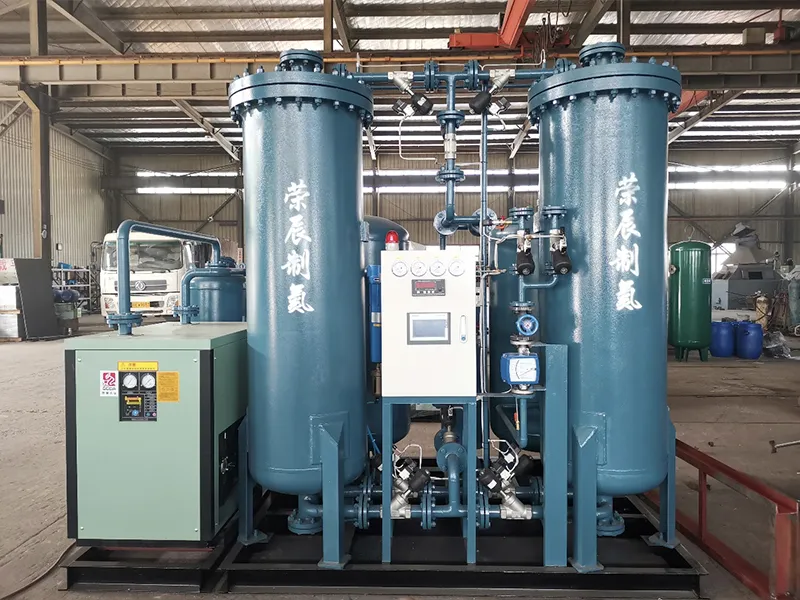

Our refrigerated air dryer carries out heat exchange by use of condenser to cool down the compressed air to condense the moisture in the air flowing out of the discharge gate to produce highly-dried product gas.
-
Inlet temperature (optional):
Room temperature type ≤45°C
High temperature type ≤80°C -
Cooling method (optional):
Air cooling
Water cooling -
Working pressure (optional):
Common type (0.3-1.0MPa)
High pressure type (above 1.2MPa) - Flow rate: 1.2-510m³/min
- Pressure dew point: 2-10°C

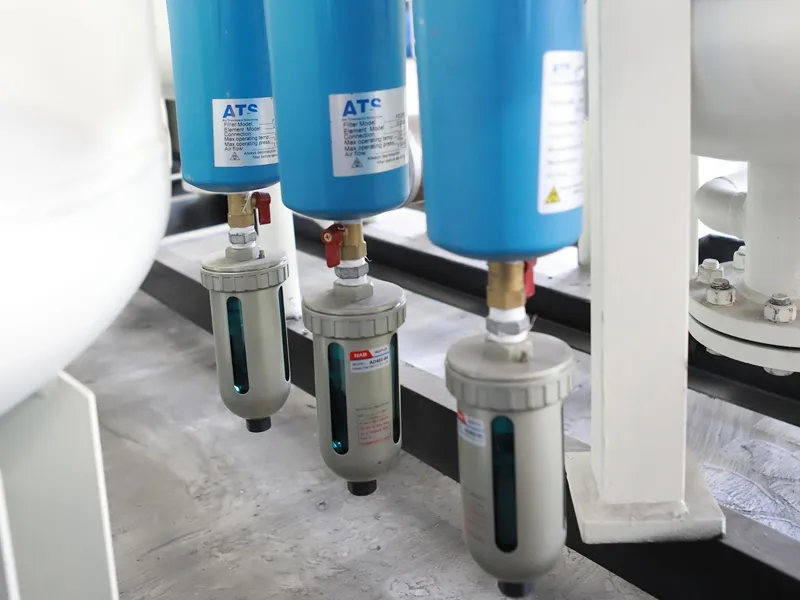

This high-efficiency precision filter can effective filter out the impurities in the air such as dust, particles, etc., to ensure the purity of air before entering the nitrogen generator, as well as reduce the risk of corrosion of the equipment by the gas. It can also adsorb the moisture in the air with adsorbent and activated carbon filters to prevent the moisture from affecting the production efficiency and purity of the product gas. This precision filter is often used in industries with high requirement for gas purity, such as food manufacturing and pharmaceutical industry.

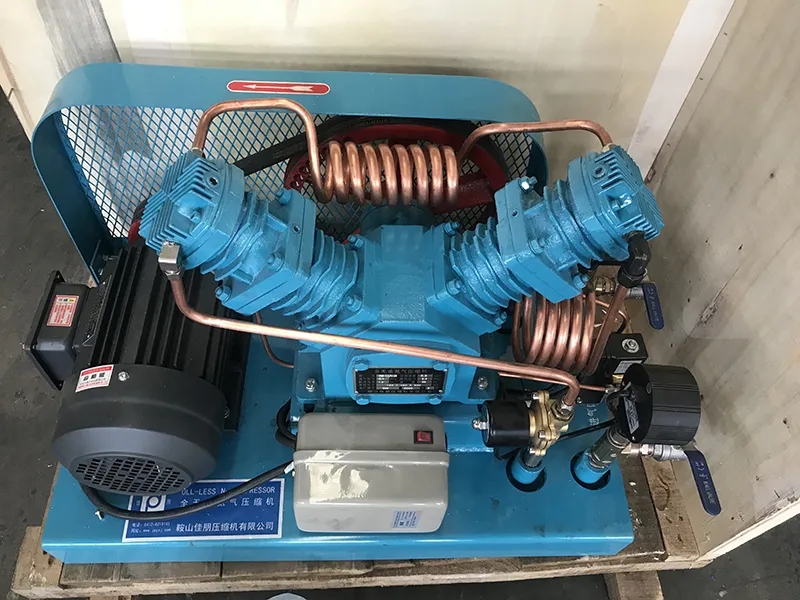

The nitrogen/oxygen booster utilizes the high compressibility and stability of nitrogen and oxygen. First the nitrogen is compressed to a certain pressure, then fed into the pressured container to increase the gas pressure for further storage and usage. We can also make customization of our products according to your usage, to meet specific production requirements.
- Flow rate: 1-500Nm³/h
- Media: nitrogen/oxygen
- Pressure: 1-200bar
- Equipment Construction: Our nitrogen/oxygen booster is mainly composed of gas supplying device, gas booster device, pressure regulator and control system.
- Gas supplying device: Usually consists of compressor and cylinder for compressing and storing the air
- Gas booster device: Usually consists of a booster pump and a pressure booster to pressurize the gas to a certain higher pressure
- Pressure regulator: Includes outlet pressure meter, regulating valve and safety valve to regulate the outlet gas pressure to ensure operating safety
- Control system: Executes functions such as starting, stopping, monitoring of operating status and safety protection
-
Environmental Protection
With the increasing attention paid to environmental protection, more and more enterprises began to invest on the low-carbon emission of waste water and materials, for example, the oil sludge produced by petroleum mining, especially hydrocarbon gases, should be heated without oxygen in the heat treatment process for the safety and processing effect.
-
Glass
The traditional glass molding process can generally be divided into three steps: forming, annealing and cooling.
-
Laser Cutting
Laser cutting has become an important metal processing methodology in modern industry. Since nitrogen plays an important role in laser cutting, the importance of nitrogen generator is more and more prominent in the laser cutting industry.
-
Mining
Nitrogen generators can be used in mining industry for fireproofing and extinguishing, gas dilution in mining industry. Therefore, a continuous and stable supply of nitrogen can help protect the safety of life and property of workers and companies.
-
Medical & Industrial Oxygen
Oxygen generator is widely used in medical treatment and industrial machinery, such as filling of medical oxygen cylinders and preparation of medical hydrogen peroxide.
Want more information about gas generation equipment?
Contact us today and our experts are happy to advise you and find a solution to your application.
Nitrogen Generator for Pharmaceutical Manufacturer
Two sets of stainless steel high purity nitrogen generators for pharmaceuticals industry.
Nitrogen Generator for Aerospace Company
The customer wants to design the whole nitrogen generator as a skid-mounted unit, which reduces the floor space and will be convenient for transportation.
Oxygen Generator for Pharmaceutical Glass Company
Need to use the oxygen generator to produce a large amount of oxygen to increase the heat created by natural gas from the flask furnace, so as to save natural gas usage to reduce costs.
Nitrogen Generator for Offshore Oil Platform
This project requires mobile nitrogen generator for offshore oil well platform with the function of automatic control, and remote control by mobile phone and computer.
Nitrogen Generator for Metal Wire Manufacturer
This client send requirement to us for nitrogen generator with high purity of 99.999% and a gas production capacity of 300Nm³/h.
Gas Purification Equipment for Rare Gas Company
The customer needs our gas purification equipment to be customized according to their project. Pressure vessel and welding process needs to be compliant with ASME certification.
Nitrogen Generator for Pesticide Manufacturer
Nitrogen generator capable of producing 1,000 cubic meters per hour with a purity of up to 99.9%.
Oxygen Generator for Calcination Furnace Company
Oxygen generator with output gas capacity of 150Nm³/h and purity of 93%. Usage: auxiliary gas for calcination furnace and gas combustion furnace.
Oxygen Generator for Calcination Furnace Company
Oxygen generator with output gas capacity of 150Nm³/h and purity of 93%. Usage: auxiliary gas for calcination furnace and gas combustion furnace.
Nitrogen Generator for Stainless Steel Laser Cutting
Nitrogen generator used for high purity nitrogen production in stainless steel plate laser cutting, our client will provide the required nitrogen pressurization system.
Nitrogen Generator for Food Packaging
4 packaging machines with high purity nitrogen production equipment in line with the international standard of nitrogen for foodstuffs.
