- Working pressure: 0.6～1.0Mpa
- Flow rate: 0.8-300Nm³/min
- Desiccant: activated alumina/ molecular sieve
- Pressure dew point: -20℃～-70℃
- Intake temperature: 0℃～45℃
- Air consumption: ≤7%
- Pressure drop: ≤0.025mpa
- Control method: PLC control

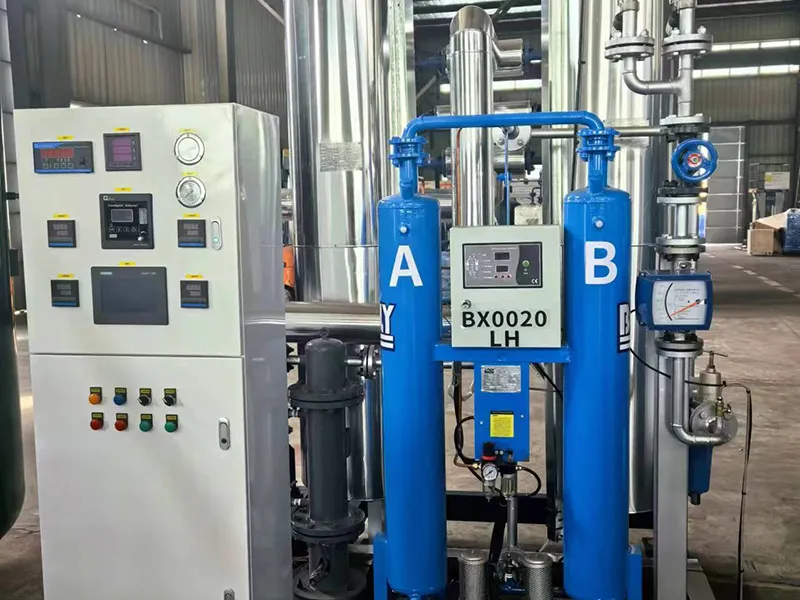

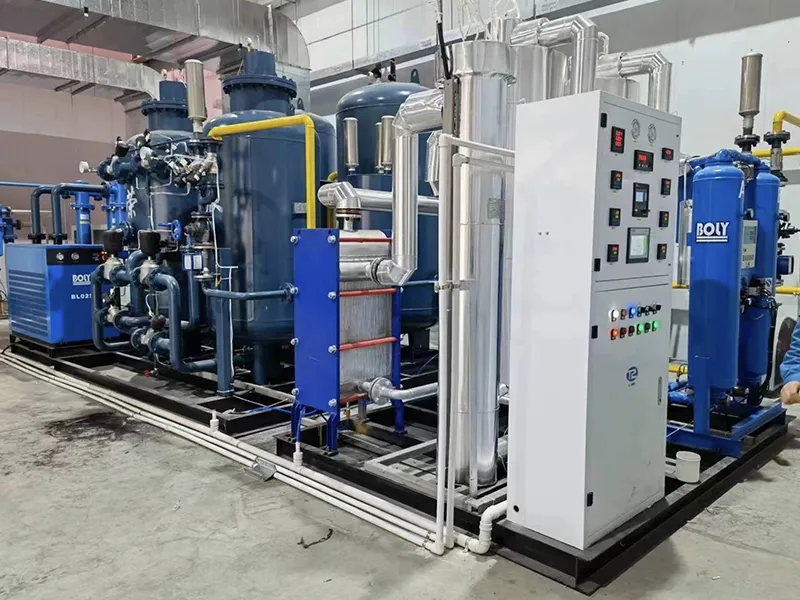

Our micro-heat regeneration adsorption dryers combines the advantages of pressure swing adsorption and temperature swing adsorption. The moisture adsorbed during the adsorption process can be completely removed during the regeneration process by the joint action of the thermal diffusion of the high-quality regeneration gas (heated by dry air) and the high-pressure difference.
Our heatless regeneration adsorption dryer operates under the principle of pressure swing adsorption. When compressed air flows into dryer A, B filled with adsorbent, one of them will adsorb the moisture under working pressure, and the other do gas analysis under atmospheric pressure, the process will be controlled by PLC system to switch under certain time interval to make sure continuous operation.
- Adopt imported PLC intelligent control, ensuring stable and reliable operation
- Use flanged fill port for easy replacement
- Adopt special window design for easy inspection of the using condition
- Use advanced pneumatic valves ensuring more than 1 million usage
- Adopt special designed airflow diffusion device inside the adsorb tank to prolong the service life of the adsorbent.
- Regeneration gas will regenerate the adsorbent after heated by dry air, improving the regeneration effect while reducing the regeneration gas consumption.
- The dried gas can be extensively used in chemical, paint, smelting, textile, petroleum, food industries, etc.
- We can also make customization of the equipment according to your production process and gas requirement.
-
Environmental Protection
With the increasing attention paid to environmental protection, more and more enterprises began to invest on the low-carbon emission of waste water and materials, for example, the oil sludge produced by petroleum mining, especially hydrocarbon gases, should be heated without oxygen in the heat treatment process for the safety and processing effect.
-
Glass
The traditional glass molding process can generally be divided into three steps: forming, annealing and cooling.
-
Laser Cutting
Laser cutting has become an important metal processing methodology in modern industry. Since nitrogen plays an important role in laser cutting, the importance of nitrogen generator is more and more prominent in the laser cutting industry.
-
Mining
Nitrogen generators can be used in mining industry for fireproofing and extinguishing, gas dilution in mining industry. Therefore, a continuous and stable supply of nitrogen can help protect the safety of life and property of workers and companies.
-
Medical & Industrial Oxygen
Oxygen generator is widely used in medical treatment and industrial machinery, such as filling of medical oxygen cylinders and preparation of medical hydrogen peroxide.
Want more information about gas generation equipment?
Contact us today and our experts are happy to advise you and find a solution to your application.
Nitrogen Generator for Pharmaceutical Manufacturer
Two sets of stainless steel high purity nitrogen generators for pharmaceuticals industry.
Nitrogen Generator for Aerospace Company
The customer wants to design the whole nitrogen generator as a skid-mounted unit, which reduces the floor space and will be convenient for transportation.
Oxygen Generator for Pharmaceutical Glass Company
Need to use the oxygen generator to produce a large amount of oxygen to increase the heat created by natural gas from the flask furnace, so as to save natural gas usage to reduce costs.
Nitrogen Generator for Offshore Oil Platform
This project requires mobile nitrogen generator for offshore oil well platform with the function of automatic control, and remote control by mobile phone and computer.
Nitrogen Generator for Metal Wire Manufacturer
This client send requirement to us for nitrogen generator with high purity of 99.999% and a gas production capacity of 300Nm³/h.
Gas Purification Equipment for Rare Gas Company
The customer needs our gas purification equipment to be customized according to their project. Pressure vessel and welding process needs to be compliant with ASME certification.
Nitrogen Generator for Pesticide Manufacturer
Nitrogen generator capable of producing 1,000 cubic meters per hour with a purity of up to 99.9%.
Oxygen Generator for Calcination Furnace Company
Oxygen generator with output gas capacity of 150Nm³/h and purity of 93%. Usage: auxiliary gas for calcination furnace and gas combustion furnace.
Oxygen Generator for Calcination Furnace Company
Oxygen generator with output gas capacity of 150Nm³/h and purity of 93%. Usage: auxiliary gas for calcination furnace and gas combustion furnace.
Nitrogen Generator for Stainless Steel Laser Cutting
Nitrogen generator used for high purity nitrogen production in stainless steel plate laser cutting, our client will provide the required nitrogen pressurization system.
Nitrogen Generator for Food Packaging
4 packaging machines with high purity nitrogen production equipment in line with the international standard of nitrogen for foodstuffs.
- Nitrogen Generators
- Oxygen Generators
- Auxiliary Equipment
-
PSA Nitrogen Generators
PSA nitrogen generation is a technology to separate nitrogen from air by the adsorption ability of carbon molecular sieve under pressure by air compressor.
-
Modular Nitrogen Generator
Our modular nitrogen generator has a compact structure, adopting non-pressure container molded in aluminum alloy die-casting and pipeline made of high strength alloy steel with quick-connect fittings.
-
Membrane Nitrogen Generator
Our membrane nitrogen generator is designed with membrane containing a bundle of hollow fibers with holes small enough to allow the smaller oxygen molecules, as well as other molecules such as CO2, water vapor to exit through them under pressure and let nitrogen molecules remain in the fiber holes.
-
PSA Oxygen Generator
Two adsorption tower will be installed in parallel in PSA oxygen generator, one tower begins the adsorption phase while other tower regenerates by de-pressurizing.
-
VPSA Oxygen Generator
Our VPSA oxygen generator is able to generate oxygen with purity between 90% and 95%. It is mainly composed of air blower, vacuum bump, switching valve and oxygen buffer tank.
-
Modular Oxygen Generator
Our modular oxygen generator has a compact structure, adopting non-pressure container molded in aluminum alloy die-casting and pipeline made of high strength alloy steel with quick-connect fittings.
