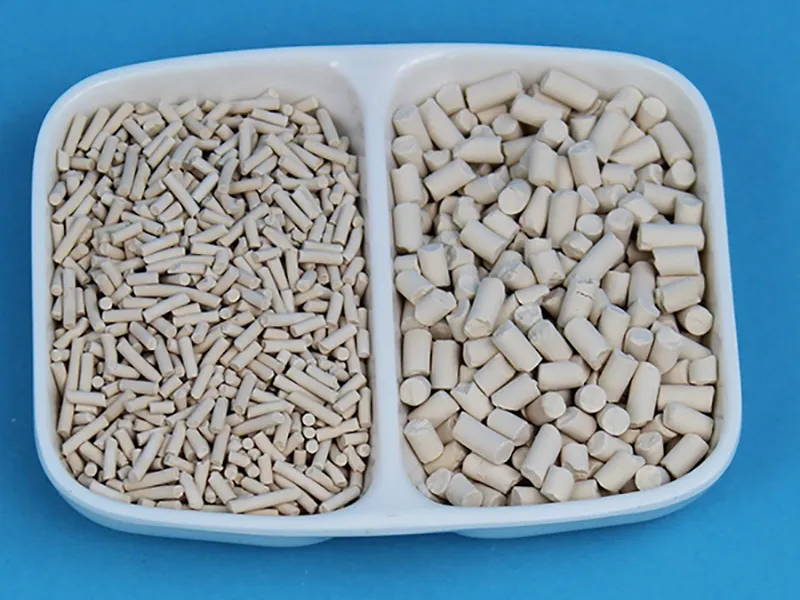

13X Molecular Sieve (Zeolite 13X)

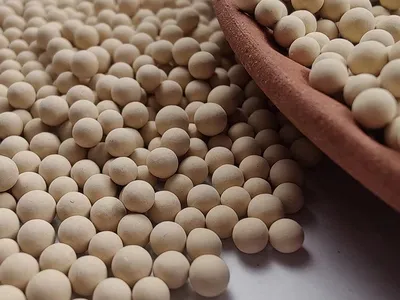

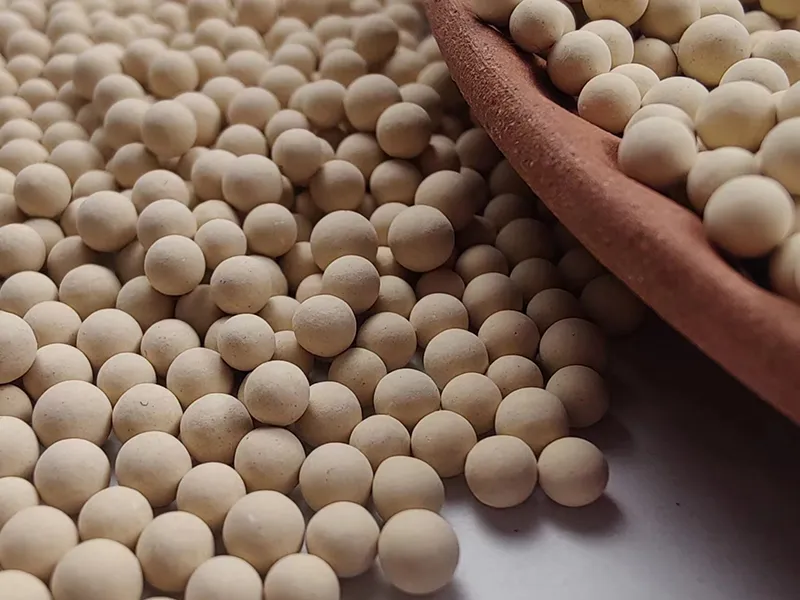

Molecular sieve 13X is a multiple-purpose, highly porous, high-capacity alkali metal alumino-silicate. It is the sodium form of the Type X crystal structure with pore diameters of approximately 10Å, suitable for adsorbing molecules ranging from 3.64Å to 10Å in size. It has low abrasion and strong water-adsorbing capacity to effectively adsorb moisture, CO2 from the air, as well as to dehydrate and desulfurize natural gas, liquefied petroleum gas, and liquid hydrocarbons. We can provide you with molecular sieve 13X in both spherical and cylindrical form.
It’s designed for dehydrating general gases, as well as the elimination of trace contaminants from air and other gases.
25kg/bag
Molecular sieve 13X is prone to moisture so it should not be exposed to the air directly, and storage should be placed in a dry place.
| Type | Spherical | Cylindrical | ||
| Diameter (mm) | 1.6-2.5 | 3-5 | 1/16” | 1/8” |
| Static Water Adsorption (≥%) | 26.5 | 26.5 | 21 | 21 |
| Static CO2 Adsorption (≥%) | 18 | 17.5 | 18 | 18 |
| Bulk Density (≥g/ml) | 0.64 | 0.62 | 0.64 | 0.64 |
| Compressive Strength (≥N/piece) | 25 | 80 | 30 | 80 |
| Abrasion (≤%) | 0.1 | 0.1 | 0.1 | 0.1 |
| Water Content (≤%) | 1.5 | 1.5 | 1.5 | 1.5 |
-
Electronics
Since high purity nitrogen gas is required as carrier gas or protective gas in the production process of electronics, so that nitrogen generator is essential in the production of electronic components.
-
Environmental Protection
With the increasing attention paid to environmental protection, more and more enterprises began to invest on the low-carbon emission of waste water and materials, for example, the oil sludge produced by petroleum mining, especially hydrocarbon gases, should be heated without oxygen in the heat treatment process for the safety and processing effect.
-
Glass
The traditional glass molding process can generally be divided into three steps: forming, annealing and cooling.
-
Laser Cutting
Laser cutting has become an important metal processing methodology in modern industry. Since nitrogen plays an important role in laser cutting, the importance of nitrogen generator is more and more prominent in the laser cutting industry.
-
Mining
Nitrogen generators can be used in mining industry for fireproofing and extinguishing, gas dilution in mining industry. Therefore, a continuous and stable supply of nitrogen can help protect the safety of life and property of workers and companies.
Want more information about gas generation equipment?
Contact us today and our experts are happy to advise you and find a solution to your application.
Nitrogen Generator for Food Packaging
4 packaging machines with high purity nitrogen production equipment in line with the international standard of nitrogen for foodstuffs.
Nitrogen Generator for Pharmaceutical Manufacturer
Two sets of stainless steel high purity nitrogen generators for pharmaceuticals industry.
Nitrogen Generator for Aerospace Company
The customer wants to design the whole nitrogen generator as a skid-mounted unit, which reduces the floor space and will be convenient for transportation.
Oxygen Generator for Pharmaceutical Glass Company
Need to use the oxygen generator to produce a large amount of oxygen to increase the heat created by natural gas from the flask furnace, so as to save natural gas usage to reduce costs.
Nitrogen Generator for Offshore Oil Platform
This project requires mobile nitrogen generator for offshore oil well platform with the function of automatic control, and remote control by mobile phone and computer.
Nitrogen Generator for Metal Wire Manufacturer
This client send requirement to us for nitrogen generator with high purity of 99.999% and a gas production capacity of 300Nm³/h.
Gas Purification Equipment for Rare Gas Company
The customer needs our gas purification equipment to be customized according to their project. Pressure vessel and welding process needs to be compliant with ASME certification.
Nitrogen Generator for Pesticide Manufacturer
Nitrogen generator capable of producing 1,000 cubic meters per hour with a purity of up to 99.9%.
Oxygen Generator for Calcination Furnace Company
Oxygen generator with output gas capacity of 150Nm³/h and purity of 93%. Usage: auxiliary gas for calcination furnace and gas combustion furnace.
Oxygen Generator for Calcination Furnace Company
Oxygen generator with output gas capacity of 150Nm³/h and purity of 93%. Usage: auxiliary gas for calcination furnace and gas combustion furnace.
Nitrogen Generator for Stainless Steel Laser Cutting
Nitrogen generator used for high purity nitrogen production in stainless steel plate laser cutting, our client will provide the required nitrogen pressurization system.
- Nitrogen Generators
- Oxygen Generators
- Auxiliary Equipment
-
PSA Nitrogen Generators
PSA nitrogen generation is a technology to separate nitrogen from air by the adsorption ability of carbon molecular sieve under pressure by air compressor.
-
Modular Nitrogen Generator
Our modular nitrogen generator has a compact structure, adopting non-pressure container molded in aluminum alloy die-casting and pipeline made of high strength alloy steel with quick-connect fittings.
-
Membrane Nitrogen Generator
Our membrane nitrogen generator is designed with membrane containing a bundle of hollow fibers with holes small enough to allow the smaller oxygen molecules, as well as other molecules such as CO2, water vapor to exit through them under pressure and let nitrogen molecules remain in the fiber holes.
-
PSA Oxygen Generator
Two adsorption tower will be installed in parallel in PSA oxygen generator, one tower begins the adsorption phase while other tower regenerates by de-pressurizing.
-
VPSA Oxygen Generator
Our VPSA oxygen generator is able to generate oxygen with purity between 90% and 95%. It is mainly composed of air blower, vacuum bump, switching valve and oxygen buffer tank.
-
Modular Oxygen Generator
Our modular oxygen generator has a compact structure, adopting non-pressure container molded in aluminum alloy die-casting and pipeline made of high strength alloy steel with quick-connect fittings.
